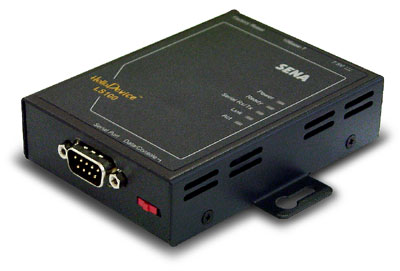

Sena LS100 / LS110 Serial Server

Includes Virtual Serial port Redirector Software On-line Store

Product Description

The LS100 and LS110 are the most cost effective one port serial-Ethernet communication devices. both models support RS232 serial communication allowing virtually any asynchronous serial device to be accessed over a network.

As for the Internet connectivity, the LS100 and LS110 supports open network protocols such as TCP/IP allowing serial devices to be accessed over broadband network or conventional LAN (Local Area Network) environment.

The LS100 and LS110 provides the management console using Telnet and serial console port under the password protection support. Our pricing includes the Tactial software™ Serial to IP redirection software for Sena servers bundled in, and a serial cable. The software supports up to 256 virtual COM ports.


  • Connects legacy serial devices to 10Base-T Ethernet network
  • Supports RS232 based serial devices via DB9 serial port
  • Serial data transfer rate up to 115Kbps
  • Reliable TCP/IP protocol stack
  • PPPoE protocol for DSL connection to broadband network
  • Low-price model for lowest transition cost
  • Configuration via telnet or serial port
  • Management software for configuration and administration
  • Serial to IP Redirection software included.
  • LS110: Includes Surge Protection
  • LS110: Includes advanced COM port Control RFC-2217


Serial Interface Male DB9
Serial Speed 1200bps ~ 115Kbps
Serial Flow Control None, Hardware
Serial Pins RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
Network Interface 10 Base-T Ethernet with RJ45
Protocols ARP, IP/ICMP, TCP/IP, Telnet, DHCP client, PPPoE
Security User ID & Password
Management Telnet, Serial console port & HelloDevice Manager
LED Displays Power/Ready/10 Base-T Link/Act, Serial Rx, Tx
Supply Power Voltage 7.5V ~ 15V DC
Supply Power Current 300mA / 7.5V DC
Operating Temperature 5°C to 50°C
Storage Temperature -40°C to 66°C
Dimension 100x 72 x 25 (mm) 3.94 x 2.83 x 0.98 (in.)
Weight 240g
Approvals FCC(A), CE, MIC
Warranty 5-year Limited Warranty


Virtual Serial Port Software Supported Operating Systems:

All popular versions of Windows 32-bit and 64-bit (both Server and Workstation versions) are supported by the Serial to IP redirection software:

  • Windows 7/Vista/XP
  • Windows Server 2008, 2003
  • Windows 2000, NT4, ME, 98
  • Windows Terminal Services
  • Citrix Metaframe

Supported Application Software:

Applications are widespread throughout many enterprises in all major industries. Access to devices such as digital cameras, pan/tilt devices, access control boxes, card readers, machine tools, POS equipment and a whole range of other traditional computer peripherals can be done over the network through the use of Sena serial servers and Seria to IP. Typical applications include:

  • Security system control.
  • Process control.
  • Factory automation.
  • DCB multiplexers.
  • Access Switches.
  • Multi-point data collection.
  • ATM access.
  • PBX management.
  • Bar code scanners.
  • Climate control devices.
  • Legacy applications which only communicate with a local COM port.

Service and Support:

Our goal at PC Micro is complete customer satisfaction. Feel free to contact us if you need any assistance. We can answer technical questions either by email or you can give us a call and speak directly with your account manager.


Our price is $75 for the LS100, or $95 for the LS110 with surge protection. Both are a complete kit including hardware, Serial-IP Redirection software, and a serial cable. We provide free technical support.

Visit our on-line store for a price list, or you can request a quote.



For additional information, please contact our sales department:
Phone:   +1-805-493-8388 7am-5pm PST.
Toll-Free: 1-800-922-0005 7am-5pm PST.
Email: Sales@pcmicro.com
