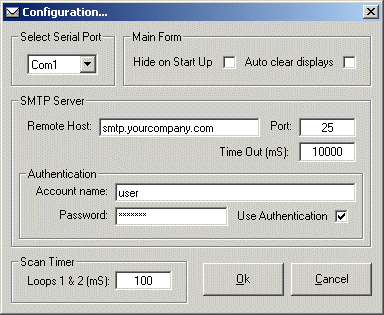

Begin by setting up the Com Port and SMTP Server settings. These are located under
Options/Configurations.
Set the following items:
Serial Port:
-
Serial Port to be monitored (where the DS-232 hardware was installed).
Main Form:
-
Hide on Start up (will force Serial Switch - SMTP™ to run in taskbar).
-
Auto clear displays (clears mail progress display on prior to new message)
SMTP Server:
-
Remote Host: Name or IP Address of SMTP Mail Server used for outgoing messages
-
Port: SMTP Server Port (Default for SMTP is Port 25. Change only if told to do so.)
-
Time Out: SMTP Server Connection Timeout (Default = 10000 milliseconds or 10 sec)
Authentication:
-
Account name: Sender account name. This is the name to the left of the @ sign.
-
Password: Sender account password.
-
Use Authentication: Specifies that you must log on to your outgoing mail server
Scan Timer:
-
Loops 1 & 2 (mS): This is the frequency of which Serial Switch - SMTP™ scans the serial
port for changes in loop status. Default value is 100 milliseconds (10 times per/second).
Select OK when completed.
